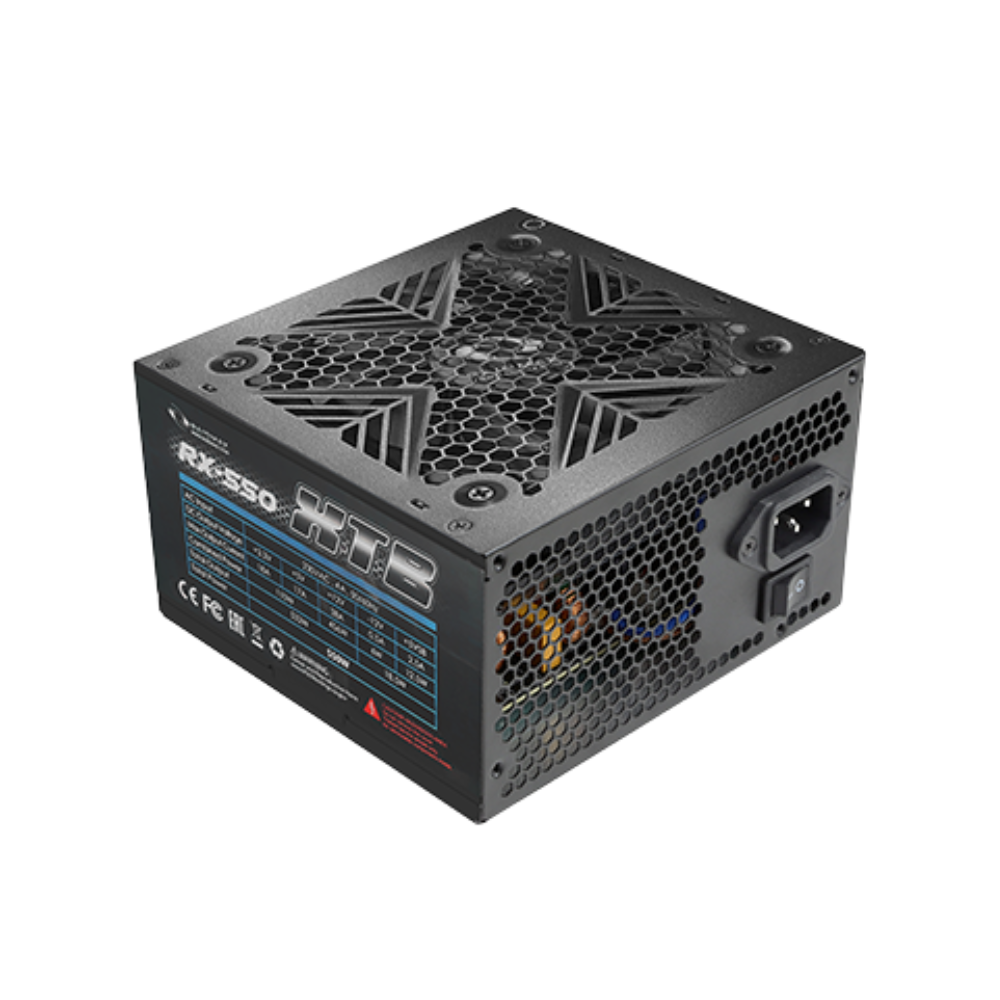

RAIDMAX XTB RX-550 550 WATTS 80+ BRONZE

Single +12V Rail: Delivers 38A/456W to support mid-range gaming GPUs.
120mm Silent Fan: Variable speed control for efficient and quiet cooling.
Honeycomb Ventilation: Advanced grid design for maximum heat dissipation.
Intel Haswell Support: Compatible with C6/C7 power-saving states.
Comprehensive Protection: Built-in OVP, OPP, and SCP safety features.
Non-Modular Design: Fixed, high-quality cables for easy installation.
Dual PCI-E Connectors: Includes one 6+2 pin and one 6-pin connector for GPU flexibility.
Black Edition Finish: Neutral matte black coating to match any case interior.

5.500 DA

Version

BOX
TRAY

Clear

Delivery Across All 58 Wilayas

We deliver to every corner of Algeria’s 58 wilayas. Delivery fees apply depending on your location. Check our Shipping FAQ for details.

Our Guarantee to You

Your satisfaction is our priority. If your order doesn’t meet expectations, our team is here to solve it—whether it’s a replacement or a refund.

RAIDMAX XTB RX-550 550 WATTS

Technical Specifications

Feature Category	Technical Detail
Model	RX-550XT / RX-550XTB
Total Power	550 Watts
AC Input	115/230VAC, 4/8A, 50/60Hz
Efficiency	Up to 80% (Typical Load)
+12V Rail Output	38A / 456W
+3.3V & +5V Combined	18A / 17A (110W Total)
Fan Size	120mm Silent Fan
Dimensions	150 x 140 x 86 mm
80 PLUS Rating	Standard / Not Certified (Model dependent)

Connector Layout

1 x 20+4 Pin Mainboard
1 x 4+4 Pin CPU (EPS/ATX12V)
1 x 6+2 Pin PCI-E
1 x 6 Pin PCI-E
4 x SATA
2 x Molex (4-Pin)

RAIDMAX XTB RX-550 550 WATTS

The RAIDMAX XTB RX-550 (XT-Series) is a popular mid-range power supply unit (PSU) designed for reliable performance in gaming and professional workstations. Built on the Intel ATX12V V2.3 standard, it provides a total output of 550W, making it a strong choice for builds featuring modern multi-core processors and mid-tier dedicated graphics cards.

This model utilizes a Single +12V rail design, which provides 38A (up to 456W) of dedicated power to ensure stability for high-demand components like the GPU. It is cooled by a 120mm silent fan with a honeycomb ventilation grid that optimizes airflow while maintaining low noise levels. The RX-550XT is equipped with heavy-duty protection technologies, including Over Voltage (OVP), Over Power (OPP), and Short Circuit (SCP) protection, ensuring the safety of your hardware during power fluctuations.
