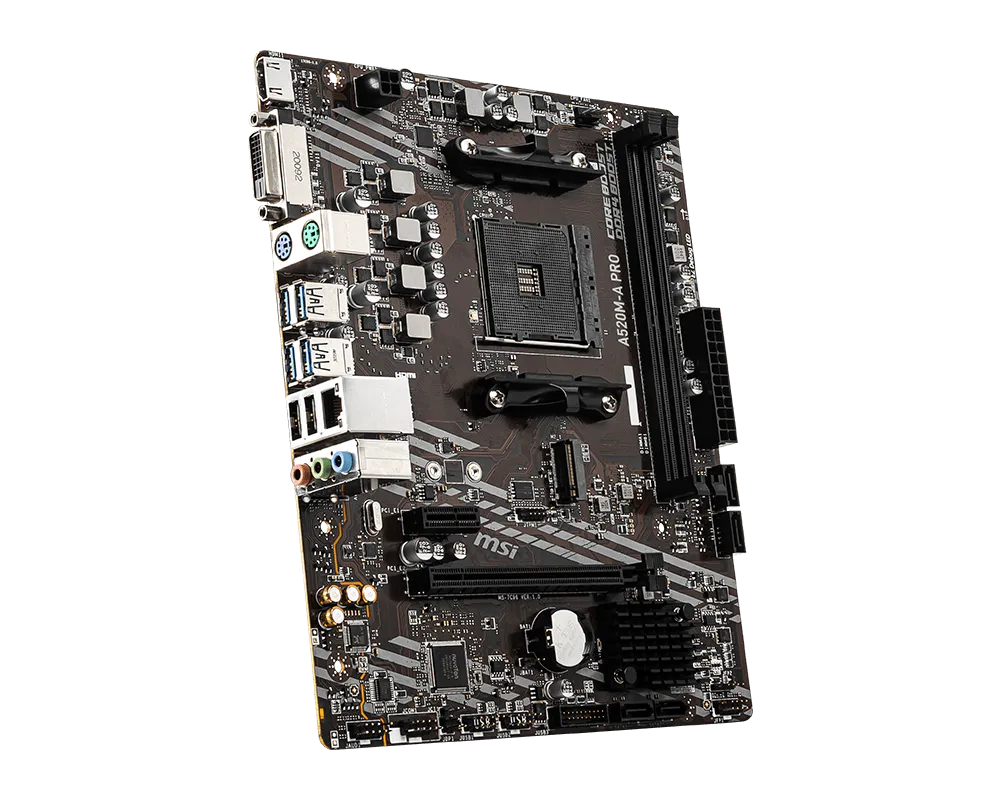

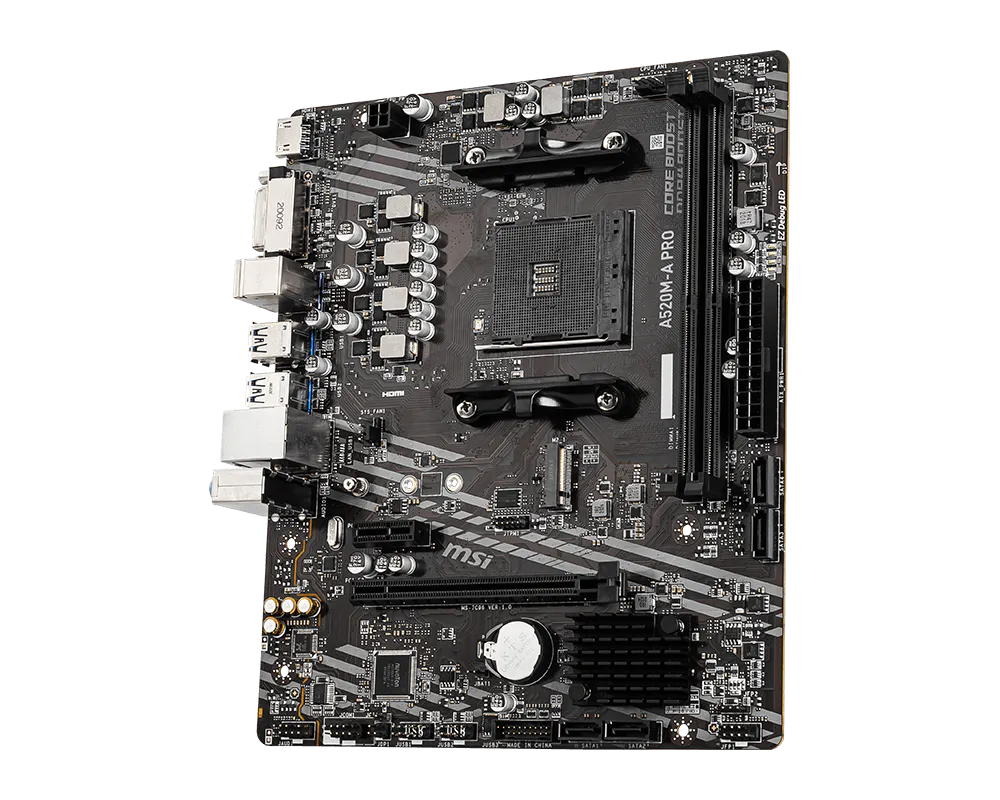

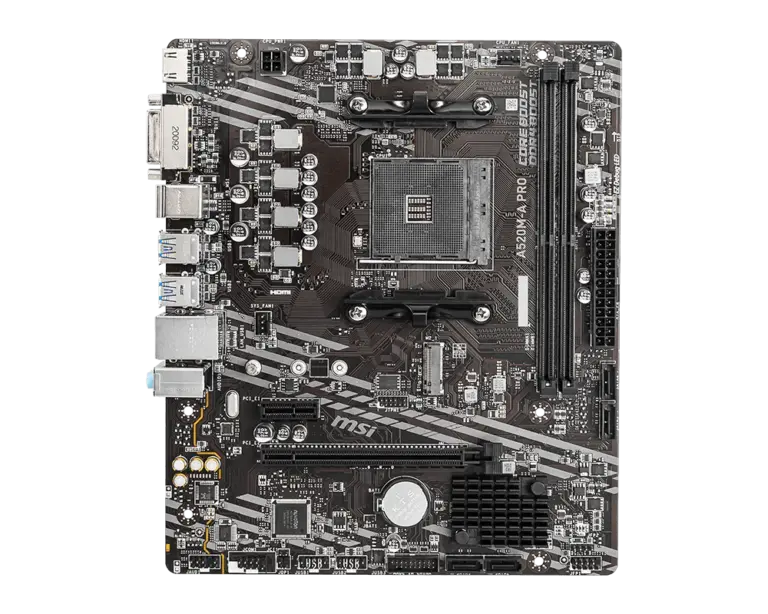

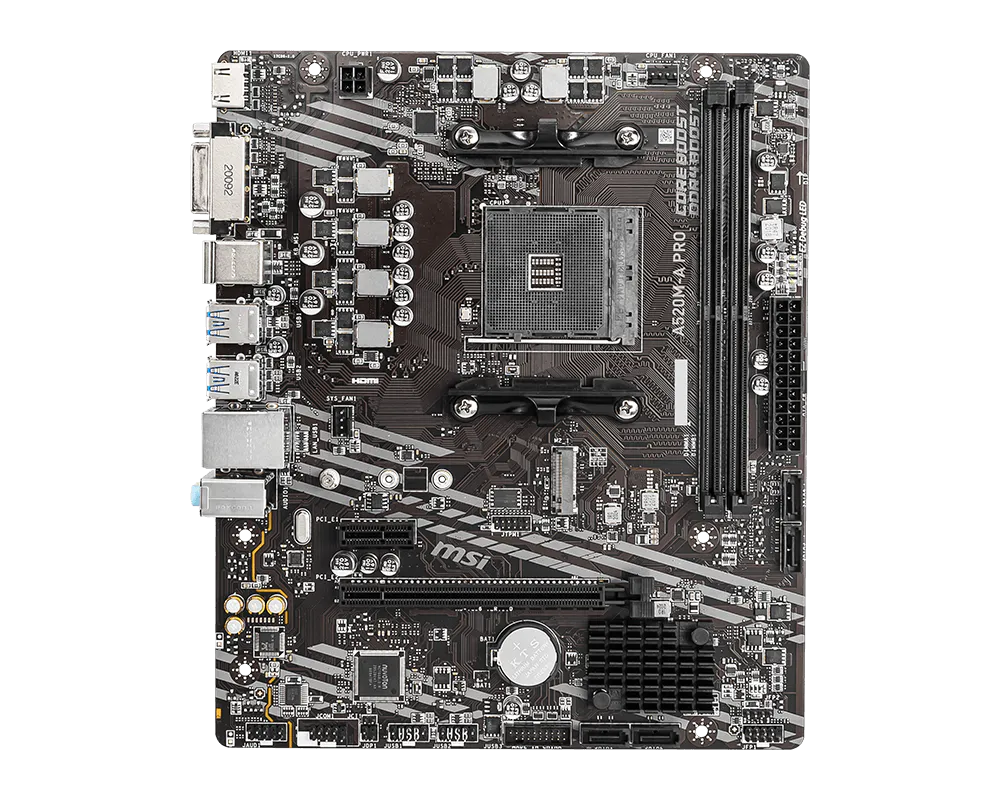

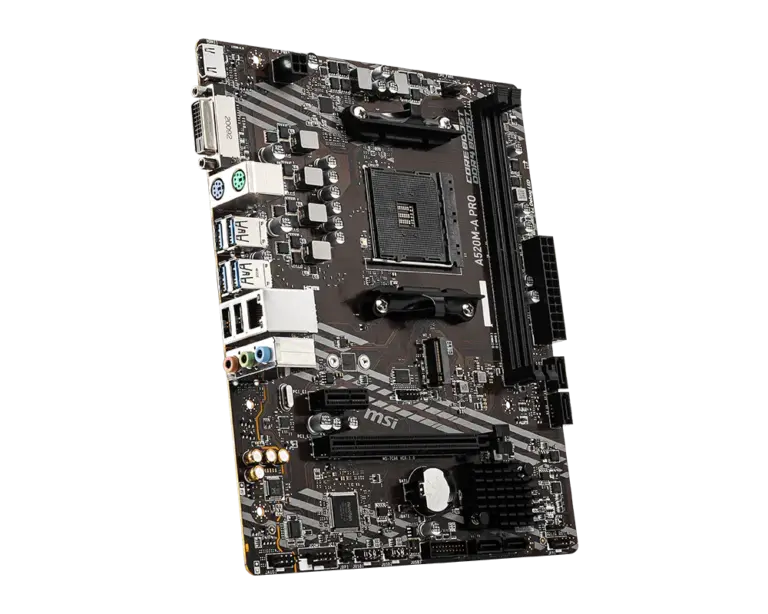

MSI A520M-A PRO DDR4 Micro-ATX Motherboard AM4

AMD AM4 Socket Support: Compatible with Ryzen 3000, 4000 G-Series, and 5000 Series processors.
Turbo M.2 Slot: Supports NVMe SSDs at speeds up to 32Gb/s (PCIe Gen3 x4) for high-speed storage performance.
DDR4 Boost & A-XMP: Optimized memory traces and easy-to-enable profiles for stable memory overclocking up to 4600+ MHz.
EZ Debug LED: Onboard LEDs to help you quickly identify the source of any boot-up or hardware issues.

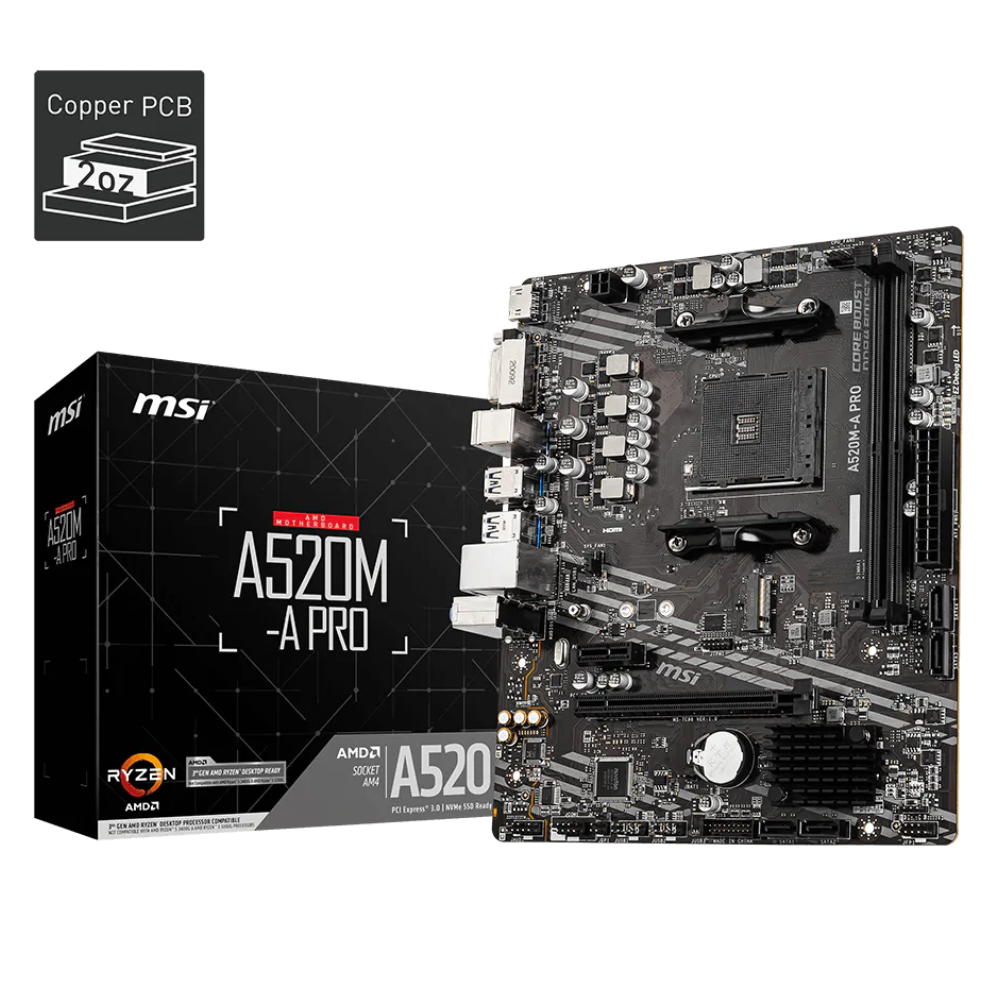

2oz Thickened Copper PCB: Enhanced thermal management and signal integrity for improved reliability.
Core Boost Technology: Premium layout and digital power design to support multi-core CPUs with precise current delivery.
Audio Boost: High-quality audio components and isolated circuitry for studio-grade sound quality.
4K HDMI Support: Onboard HDMI 2.1 port supports resolutions up to 4K at 60Hz (requires CPU with integrated graphics).

14.900 DA

Delivery Across All 58 Wilayas

We deliver to every corner of Algeria’s 58 wilayas. Delivery fees apply depending on your location. Check our Shipping FAQ for details.

Our Guarantee to You

Your satisfaction is our priority. If your order doesn’t meet expectations, our team is here to solve it—whether it’s a replacement or a refund.

MSI A520M-A PRO DDR4 Micro-ATX Motherboard AM4

Technical Specifications

Feature Category	Technical Detail
Chipset	AMD A520
Form Factor	Micro-ATX (23.6 cm x 20 cm)
Memory Slots	2x DDR4 DIMM (Up to 64GB)
Expansion Slots	1x PCIe 3.0 x16, 1x PCIe 3.0 x1
Storage	1x M.2 (Key M) 2242/2260/2280, 4x SATA 6Gb/s

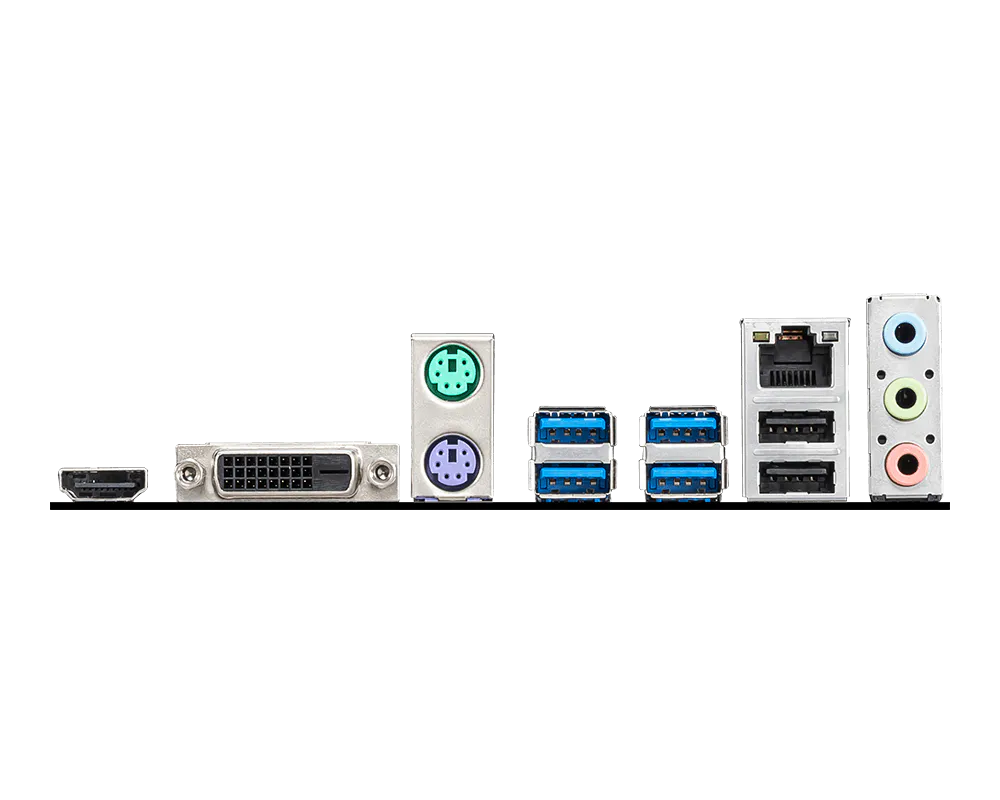

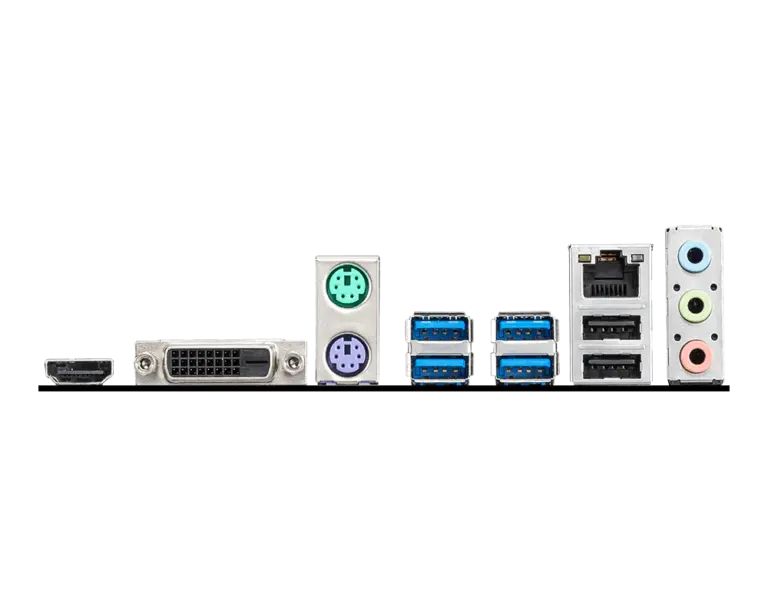

Video Outputs	1x HDMI 2.1 (4K@60Hz), 1x DVI-D
USB Support	6x USB 3.2 Gen 1, 6x USB 2.0 (Total)
LAN	Realtek RTL8111H Gigabit LAN
Audio	Realtek ALC892/ALC897 7.1-Channel HD Audio
Operating System	Support for Windows 10/11 64-bit

MSI A520M-A PRO DDR4 Micro-ATX Motherboard AM4

The MSI A520M-A PRO is a professional-grade Micro-ATX motherboard designed for reliability and efficient performance. Built on the AMD A520 chipset, it is an ideal foundation for budget-conscious business systems or entry-level gaming builds using AMD Ryzen 3000, 4000 G-Series, and 5000 Series desktop processors. Part of the MSI “PRO” series, it focuses on high-quality assembly and streamlined workflows to ensure long-term stability and easier troubleshooting.

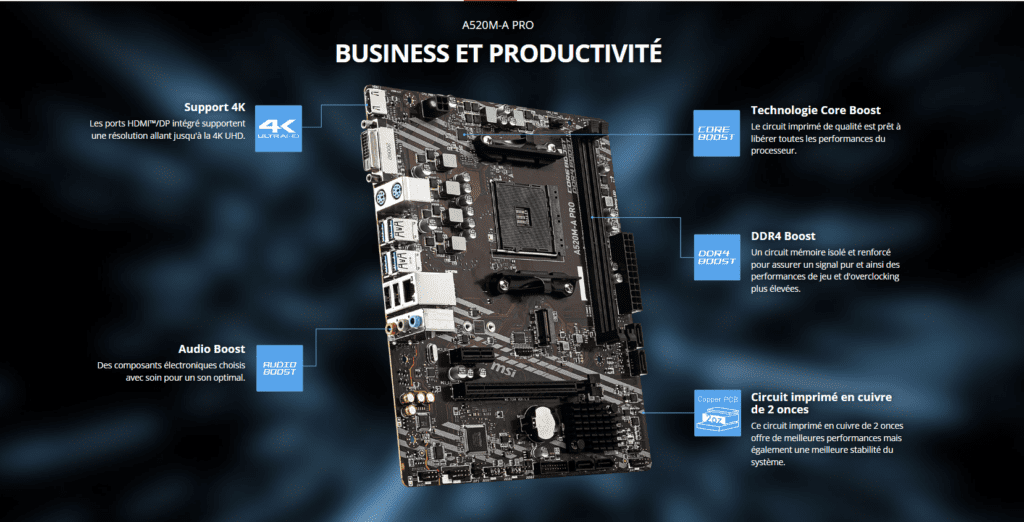

Despite its compact size and affordable price point, the A520M-A PRO includes enthusiast-grade features like Turbo M.2, which supports NVMe-based SSDs at PCIe Gen3 x4 speeds for lightning-fast boot times and application loading. It also features DDR4 Boost technology, which utilizes an isolated circuit to deliver pure data signals, ensuring maximum memory stability and performance—even when using high-frequency XMP profiles.

The motherboard is built with a 2oz Thickened Copper PCB, a premium design choice that significantly improves heat dissipation and conductivity, making the board more reliable under sustained workloads. For troubleshooting, MSI has included the EZ Debug LED, which provides a quick visual reference to identify issues with the CPU, Memory, or GPU during the boot process. It is a no-nonsense, dependable solution for modern AM4 builds.
