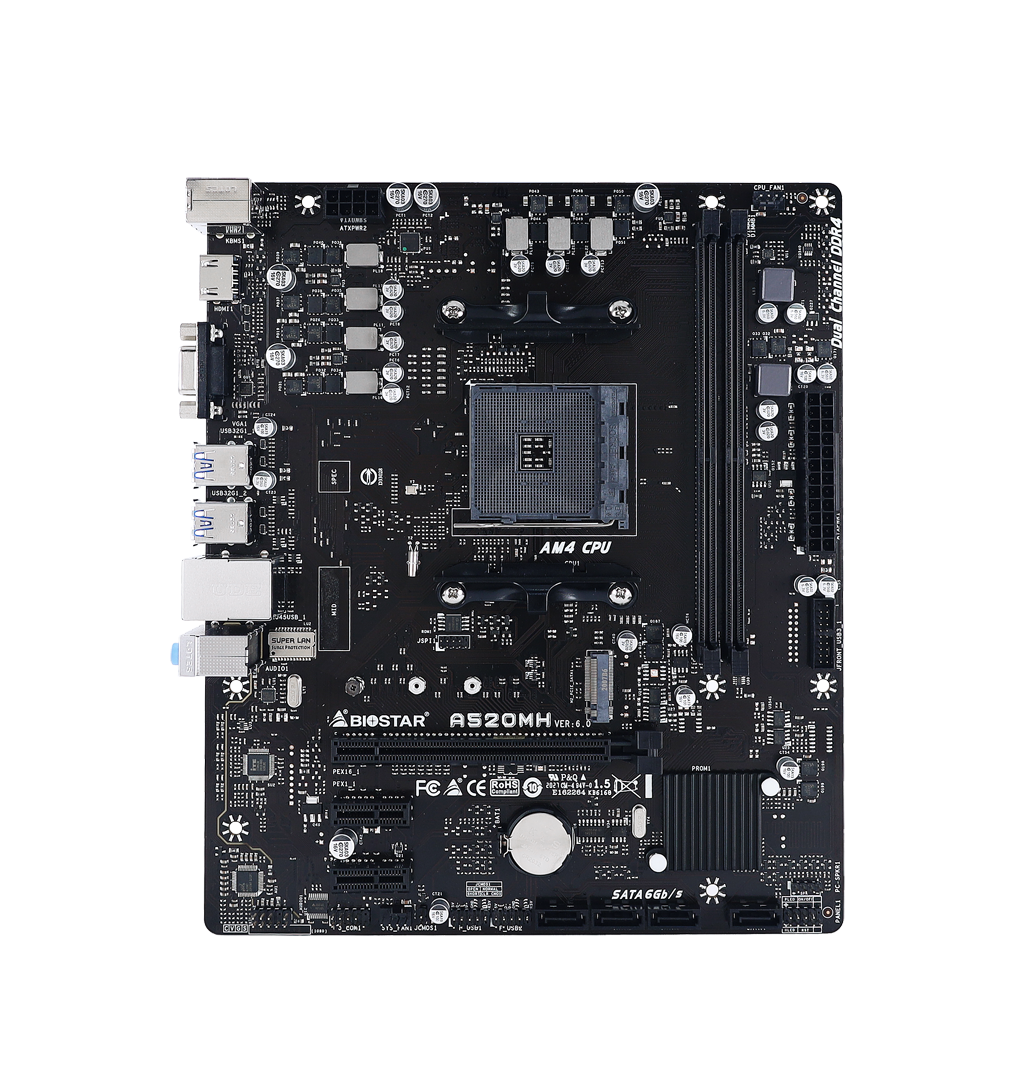

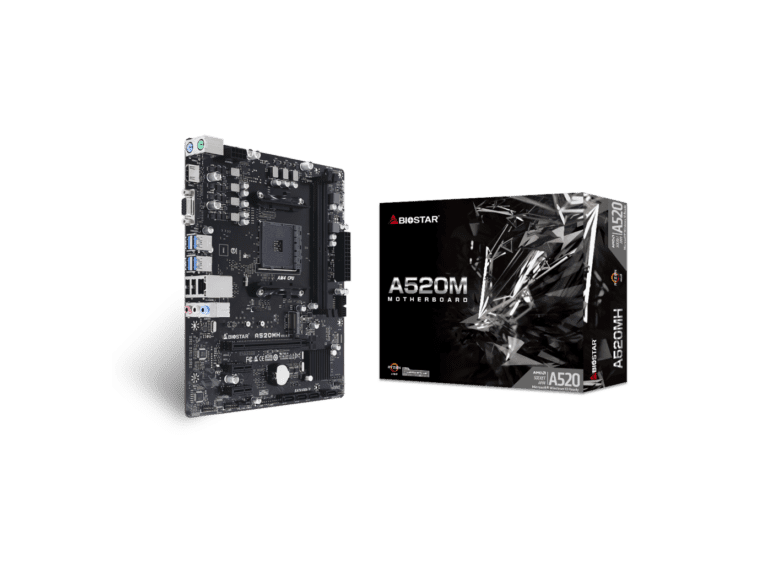

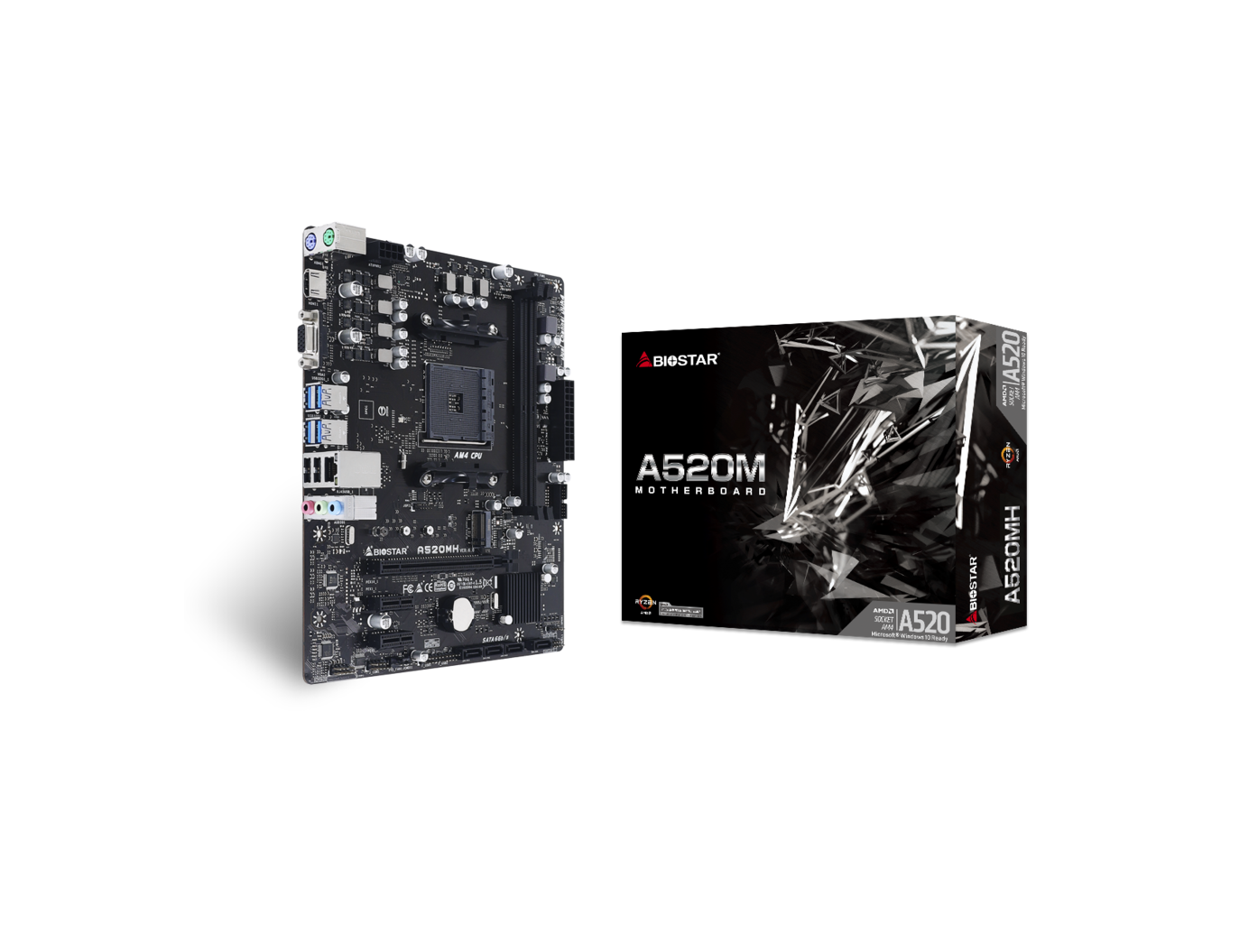

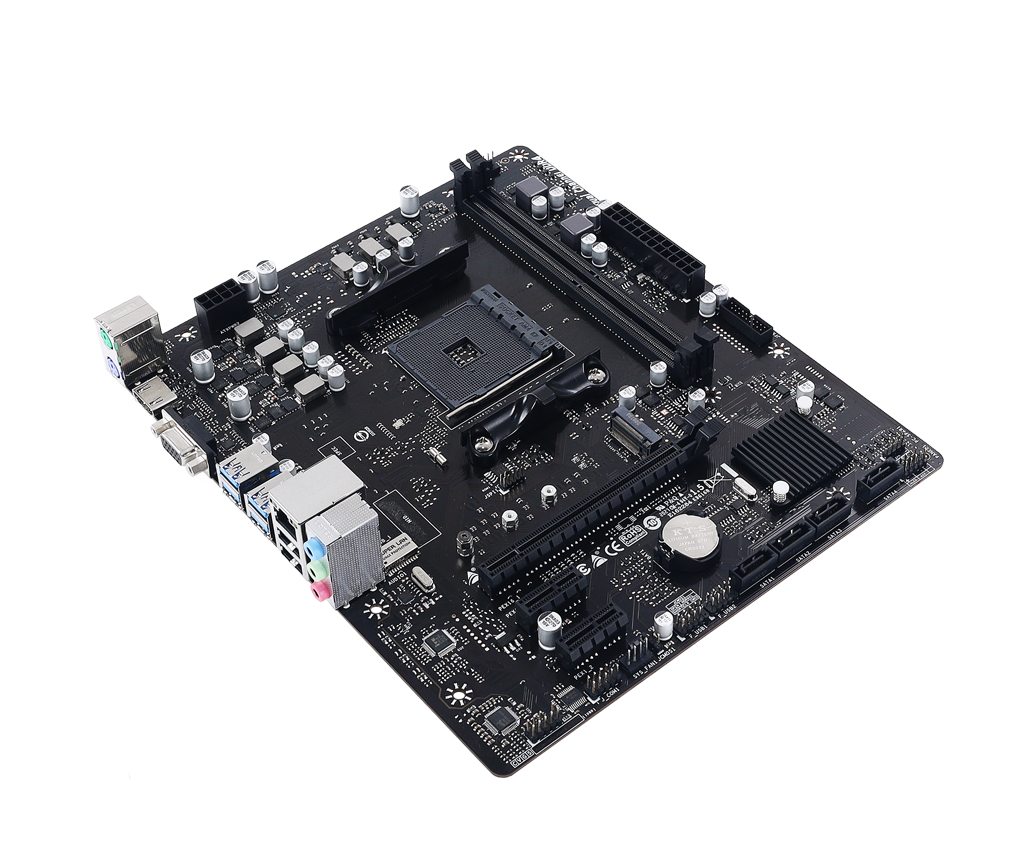

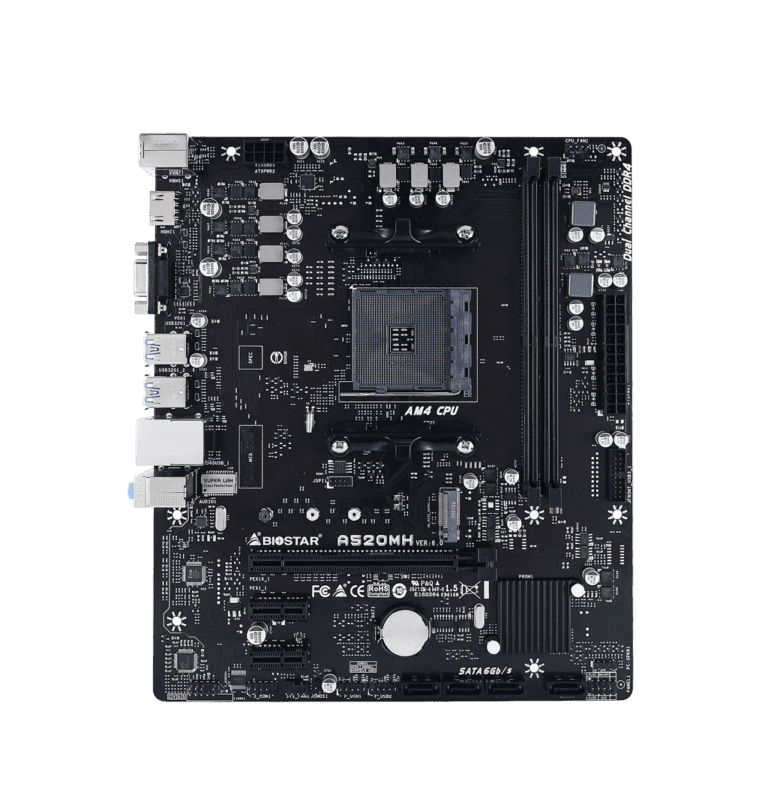

BIOSTAR AMD A520 MHP DDR4 Micro-ATX Motherboard AM4
-
AMD A520 chipset with AM4 socket
-
Supports Ryzen 3000 / 4000G / 5000 CPUs
-
PCIe 3.0 x16 slot for mainstream graphics cards
-
M.2 slot for NVMe SSDs
-
Dual DDR4 slots supporting up to 64GB
-
Micro-ATX layout for compact builds
-
Reliable UEFI BIOS
16.200 DA
Delivery Across All 58 Wilayas
We deliver to every corner of Algeria’s 58 wilayas. Delivery fees apply depending on your location. Check our Shipping FAQ for details.
Our Guarantee to You
Your satisfaction is our priority. If your order doesn’t meet expectations, our team is here to solve it—whether it’s a replacement or a refund.
BIOSTAR AMD A520 MHP

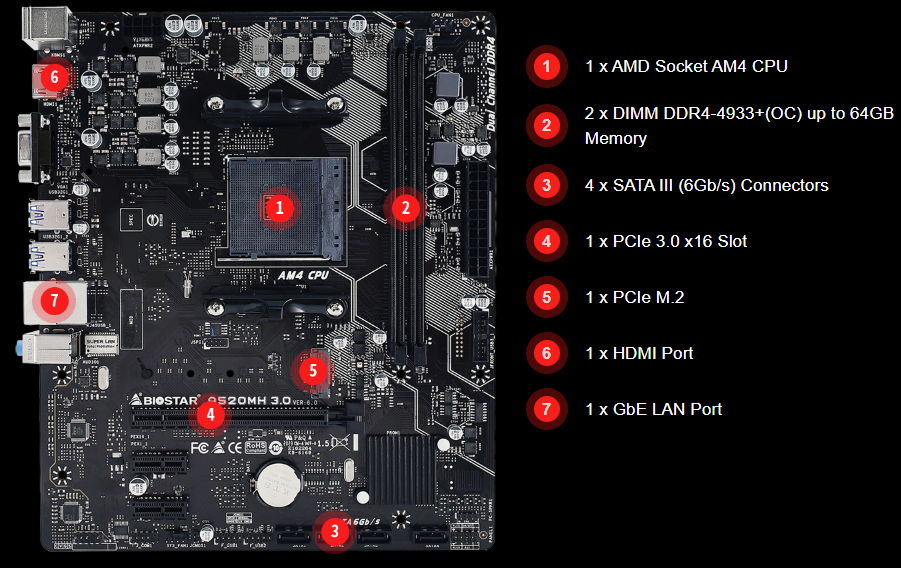

Technical Specifications
| Category | Details |
|---|---|
| Brand | BIOSTAR |
| Model | A520 MHP |
| Chipset | AMD A520 |
| CPU Socket | AM4 |
| Supported CPUs | AMD Ryzen 3000 / 4000 G-Series / 5000 Series |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
| Memory Slots | 2 x DIMM |
| Max Memory Capacity | Up to 64GB |
| Supported Memory Speeds | 2133 / 2400 / 2666 / 2933 / 3200 MHz |
| Dual Channel Support | Yes |
| PCIe Main Slot | 1 x PCIe 3.0 x16 |
| Additional PCIe Slots | 1 x PCIe 3.0 x1 |
| Storage – M.2 | 1 x M.2 (PCIe 3.0 x4) |
| Storage – SATA | 4 x SATA III 6Gb/s |
| RAID Support | No (A520 standard) |
| Graphics Output | HDMI, VGA |
| Audio | Realtek High Definition Audio |
| Audio Channels | 7.1 Channel HD Audio |
| LAN | Realtek Gigabit Ethernet |

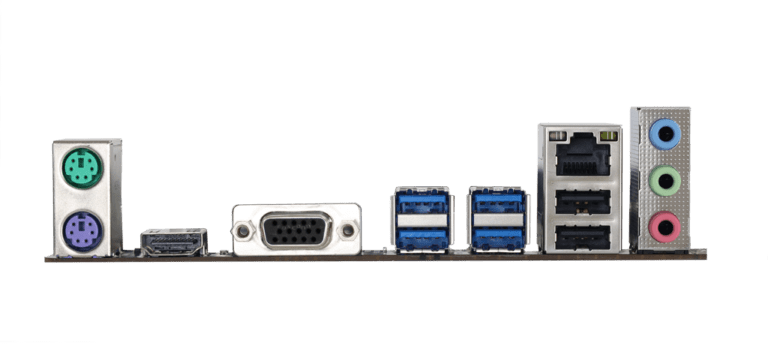

| USB Rear | USB 3.2 Gen1, USB 2.0 |
| USB Internal Headers | USB 3.2 Gen1, USB 2.0 |
| BIOS Type | UEFI BIOS |
| Fan Headers | CPU Fan + System Fan |
| Power Connector | 24-pin ATX + 8-pin CPU |
| Operating System Support | Windows 10 / Windows 11 |
| Color | Black |
BIOSTAR AMD A520 MHP
The BIOSTAR A520 MHP is a reliable Micro-ATX motherboard built for AMD Ryzen processors, providing a stable and efficient platform for basic gaming, productivity, and everyday computing. Based on the AMD A520 chipset, it supports Ryzen 3000, 4000 G-Series, and 5000 series CPUs, making it suitable for a wide range of builds.
Designed to be budget-friendly without sacrificing performance, the A520MHP includes essential features such as a PCIe 3.0 x16 slot for graphics cards and an M.2 slot for high-speed NVMe SSD storage. With support for up to 64GB of DDR4 memory across dual DIMM slots, the board ensures smooth multitasking and dependable system response.
The compact Micro-ATX form factor is ideal for smaller cases while still offering solid connectivity, including Gigabit Ethernet, multiple USB ports, and high-definition audio outputs. BIOSTAR’s intuitive UEFI BIOS and quality engineering deliver steady performance and easy system tuning.
Whether building a budget gaming PC, an office workstation, or a compact everyday system, the BIOSTAR A520 MHP provides a solid balance of features, compatibility, and reliability.
Affordable Micro-ATX A520 motherboard with core features and solid Ryzen CPU support for everyday and entry-level builds.
