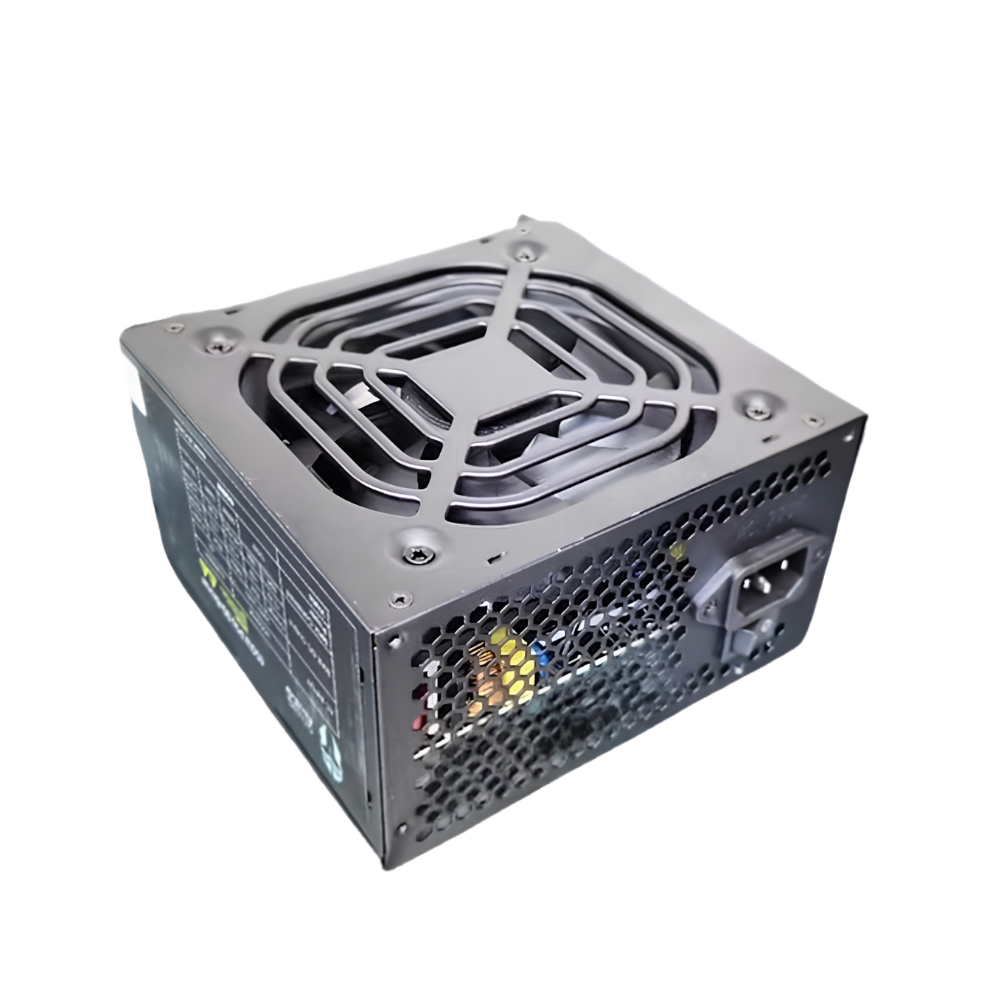

ARES 650W 80+ BRONZE ARES650B BOX

Continuous 550W Delivery: Guarantees full rated power output without sudden voltage sagging under high hardware loads.
80+ Bronze Certified: Cuts down excess heat dissipation and energy waste by running at up to 88% efficiency.
Ultra-Compact 125mm Length: Fits easily into tight micro-ATX cases, leaving massive space for clean cable tucking.
Thermal Fan Profiling: Ramps cooling speeds dynamically to keep noise low during lighter web or video workloads.
Dual 6+2 Pin PCIe Connectors: Single-cable dual head allows direct hookups for mainstream graphics cards without power adapters.

9.500 DA

Delivery Across All 58 Wilayas

We deliver to every corner of Algeria’s 58 wilayas. Delivery fees apply depending on your location. Check our Shipping FAQ for details.

Our Guarantee to You

Your satisfaction is our priority. If your order doesn’t meet expectations, our team is here to solve it—whether it’s a replacement or a refund.

ARES 650W 80+ BRONZE ARES650B

Technical Specifications

Component Category	Installed Hardware / Specific Variant	Key Metric / Feature Highlights
Brand / Model Identity	Corsair CX Series (Model: `CP-9020277`)	550 Watt ATX Power Supply Unit (PSU)
Efficiency Certification	80 PLUS Bronze	Up to 88% Operational Efficiency Under Typical System Load
Modular Infrastructure	Non-Modular (Fixed Cables)	All Cables Permanently Attached to the Main PCB Grid
+12V Rail Output Configuration	Single +12V Rail Design	44 Amps / 528 Watts Maximum Dedicated Output Capacity
Cooling Fan Hardware	120mm Thermally Controlled Fan	Variable RPM Curved Fan Profile; Low-Noise Sleeve Bearing
Built-in Power Connections	Fixed Cable Array Matrix	1x ATX 24-Pin • 1x EPS/ATX12V 8-Pin (4+4) • 2x PCIe 8-Pin (6+2) • 3x SATA • 2x PATA
Physical Enclosure Profile	Compact ATX Standard Form Factor	125 mm (Length) × 150 mm (Width) × 86 mm (Height)
Hardware Safety Protections	Industrial-Grade Security Matrix	OVP (Over-Voltage) • UVP (Under-Voltage) • SCP (Short-Circuit) • OTP (Over-Temp) • OPP (Over-Power)
Warranty & Longevity	Certified Factory Backing	5-Year Manufacturer Warranty • 100,000 Hours MTBF Rating

ARES 650W 80+ BRONZE ARES650B

The Corsair CX550 550W 80+ Bronze Power Supply is a highly reliable, non-modular ATX power unit engineered to act as the stable, cost-effective backbone for budget-friendly gaming rigs and everyday workstations. Operating within a market flooded with volatile, unbranded options, Corsair prioritizes maximum electrical security and continuous power delivery over superficial cosmetics.

Featuring a robust single +12V rail that delivers clean, regulated energy to modern mid-range GPUs and processors, the CX550 carries an official 80 PLUS Bronze certification for up to 88% energy efficiency. It relies on a thermally controlled 120mm fan that dynamically adjusts its speed to stay quiet under light desktop loads, while its ultra-short 125mm length ensures hassle-free cable routing inside tight micro-ATX or budget mid-tower cases. Backed by full industrial safety protections and a premium 5-year warranty, it provides absolute peace of mind for system builders.
